Description
SAMSUNG (OHB) OUTDOOR IP56 DISPLAY, 46" FHD, 3500NITS, HDMI(2), LAN, 24H/7D, 3YR

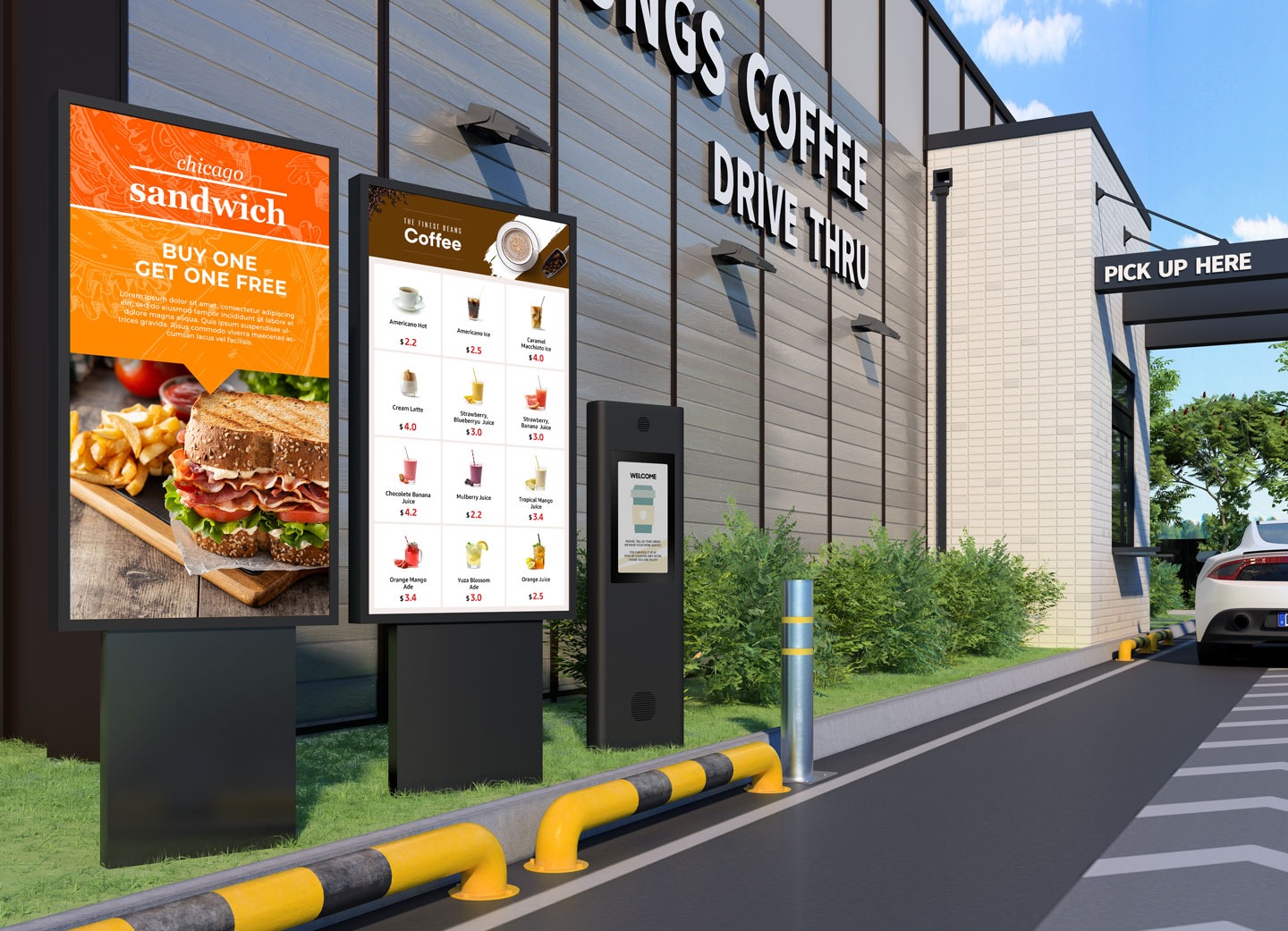

Deliver bright and brilliant messages, built for the outdoors
When it comes to providing concise communication for customers, Samsung’s OH46B-S features a bright screen for high visibility in various weather conditions. Also, designed for businesses, the display is packed with robust hardware, helping to ensure longevity and flexibility.
Clear and vivid images
UL-verified
The OH46B-S is UL-verified for outdoor visibility, offering greater brightness than 3,500nits and 24/7 performance to help deliver crisp content. Plus, a built-in auto brightness sensor automatically adjusts brightness levels based on different external lighting, while polarisation technology helps eliminate display blindness from wearing polarised lenses1.
1 Patterning may be seen while wearing polarised sunglasses due to the characteristics of the tempered safety glass.

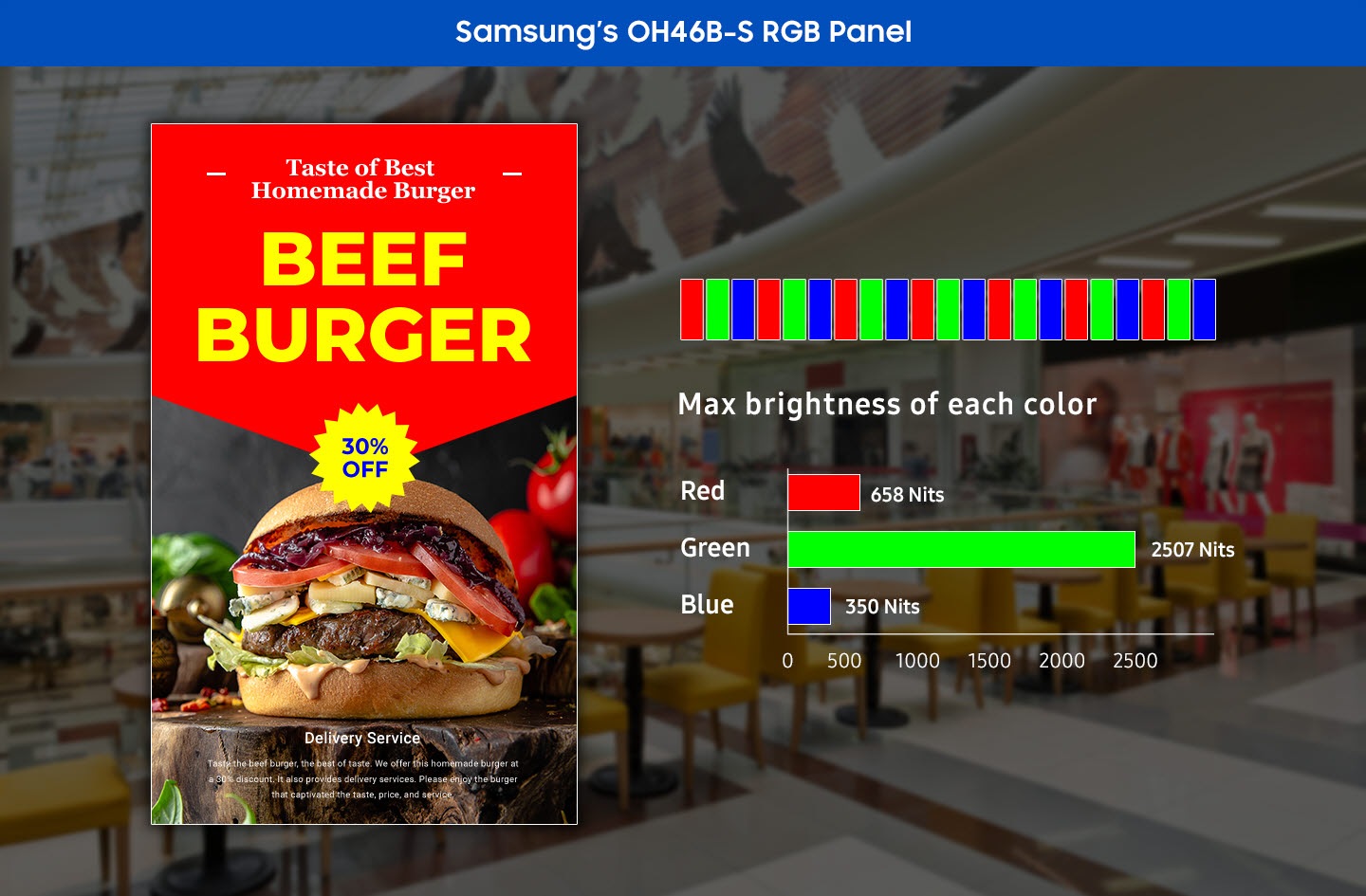

Bright, vibrant colours to support accurate communication and delivery
RBG Panel
The OH46B-S delivers colour accuracy and brightness, creating vivid content through incredible colour reproduction of red, green and blue shades2. With crisp content being what customers now expect, the display’s vivid picture quality is designed to capture customer attention.
* Image simulated for illustrative purpose only.
2 The max brightness of each colour is based on internal measurements conducted by Samsung.

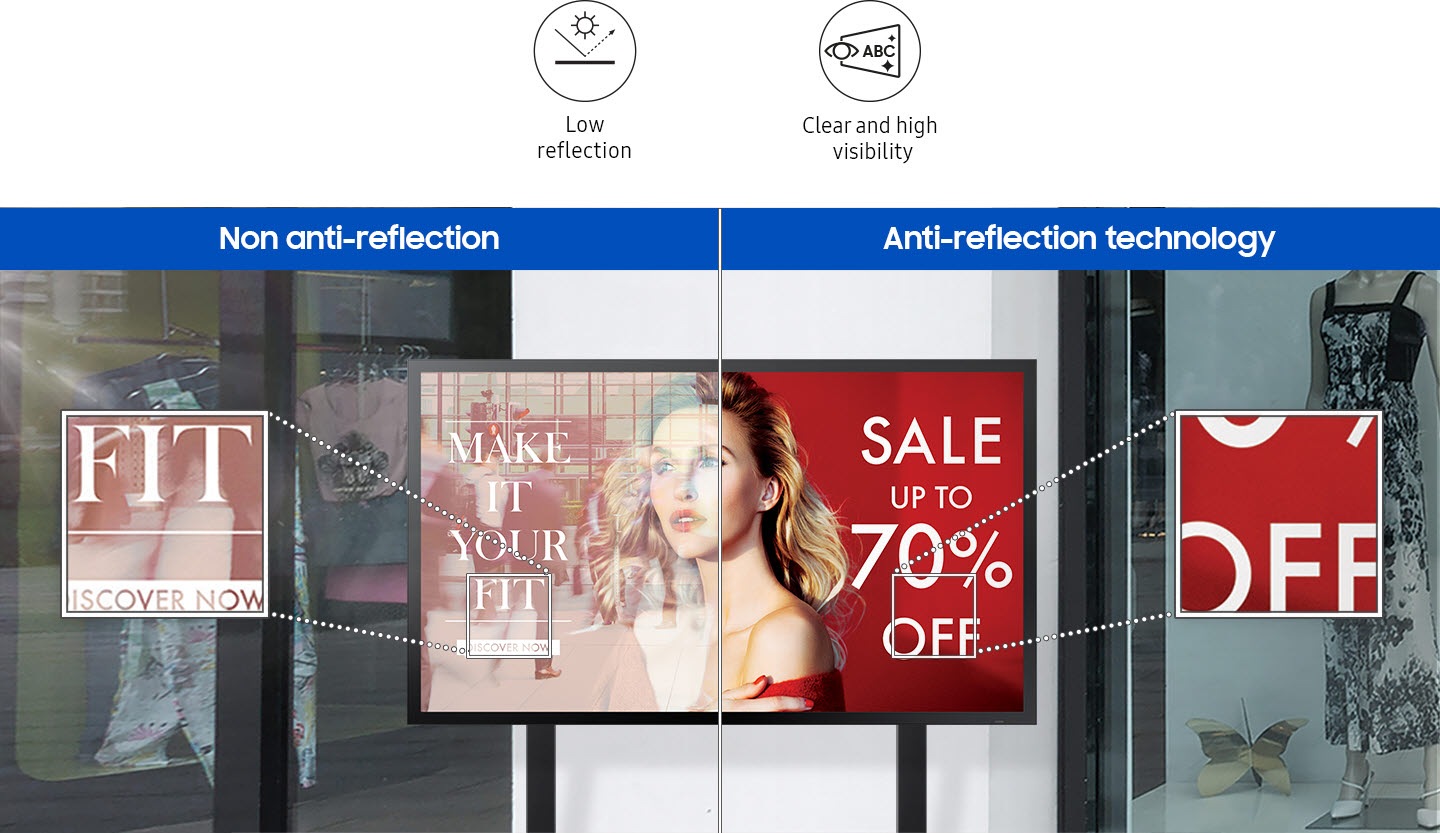

Brilliant visibility
Anti-Reflection Technology
Samsung OH46B-S is enhanced by Magic Protection Glass, which utilises anti-reflection technology. This innovative solution helps ensure high visibility when viewing in broad daylight, with a low total reflection rate3 helping to deliver clear images and text for viewers.
3 The total reflection rate is based on internal measurements conducted by Samsung.
Optimised protection in a variety of outdoor conditions
IP56-rated protection4
With certified IP56-rated protection, OH46B-S delivers robust reliability to help withstand physical impact as well as dust and water that might affect the display. This helps support optimised operation in a variety of outdoor conditions for consistent performance.
4 IP56 (Ingress Protection Rating): Degrees of protection provided by enclosures (IEC 60529).
Robust durability for screen safety
Magic Protection Glass
Fitted with tempered Magic Protection Glass, Samsung’s OH46B-S provides durability that is IK10-rated5, helping to provide safety and protection against external impact. This helps ensure the product is safe against unexpected damage, helping give store managers peace of mind.
5 The IK European strength test rating uses a 0-10 scale (where 10 indicates the highest possible protection) to measure the degree of resistance against external impact.

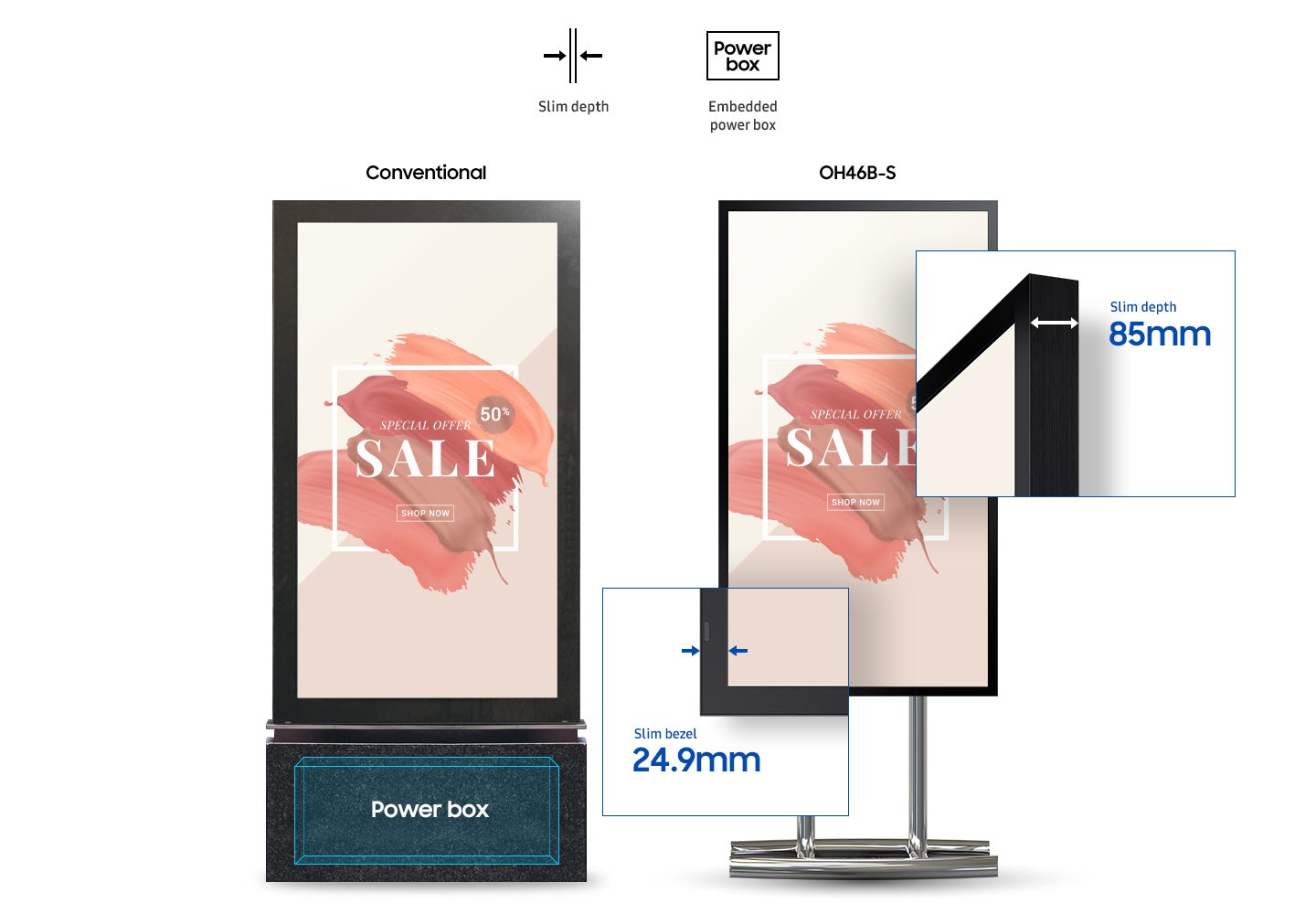

Powerful performance in an ultra slim frame
Slim Design
A slim, all-in-one composition helps enable easy installation and supports long-term performance through IP56 protection6, anti-reflection technology, damage defense7 and an efficient cooling system. Plus, an integrated power box condenses operational components and supports an ultra-slim frame.
* “Conventional” refers to Samsung’s OHD series. Images and enclosure are simulated for illustrative purpose only.
6 IP56 (Ingress Protection Rating): Degrees of protection provided by enclosures (IEC 60529).
7 The IK European strength test rating uses a 0-10 scale (where 10 indicates the highest possible protection) to measure the degree of resistance against external impact.
Smooth content playback
MagicINFO Player8
The embedded MagicINFO Player S10, backed by the powerful TIZEN operating system, helps boost the overall performance of the display. It is designed to provide easy content management, and smooth transitions and playback to help deliver a better experience for both customers and store managers.
8 MagicINFO licence must be purchased separately.

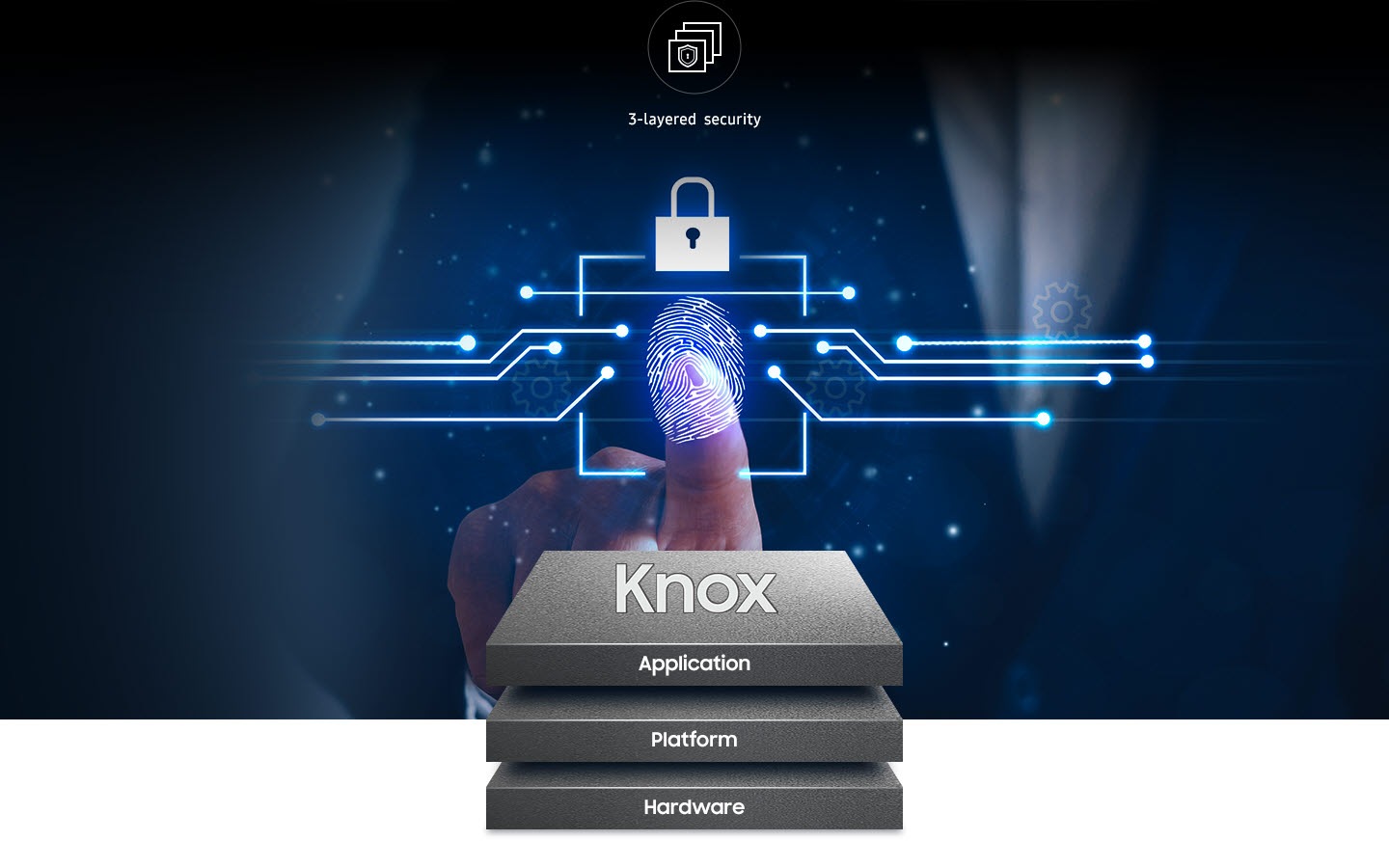

Powerful, protective security
Knox Security
The OH46B-S uses comprehensive three-layer security protection, powered by Samsung’s proprietary Knox technology, supporting application development on the secured platform and minimisation of security attacks.
Specifications
Specifications Detail
Display
- Diagonal Size46"
- Panel TypeVA
- Resolution1,920 x 1,080
- Pixel Pitch (HxV)0.53x0.53mm
- Brightness (Typ)3,500 (Peak 4,000 )
- Contrast Ratio⁵6,000:1
- Viewing Angle (H/V)178/178
- Response Time6ms
- Colour GamutNTSC 72%
- Glass Haze0%
- H-Scanning Frequency15~135kHz(HDMI)
- Maximum Pixel Frequency594MHz(HDMI)
- V-Scanning Frequency24~75Hz(HDMI)
- Contrast Ratio (Dynamic)Mega
- Operation Time Support24/7
Connectivity
- HDMI In2
- Version of HDMI2
- Version of HDCP2.2
- USB1
- HDBaseT InYes
- Audio OutStereo Mini Jack
- Power OutNo
- RS232 InYes
- RS232 OutYes
- RJ45 InYes
- RJ45 OutYes
Power
- Power SupplyAC100-240V 50/60Hz
- Power Consumption (On Mode)430W
- Power Consumption (Sleep Mode)0.5W
Dimension
- Set Dimension (WxHxD)1069 x 623.6 x 85 mm
- Package Dimension (HxWxD)1156 x 713 x 200 mm
Weight
- Net Weight36 kg
- Package Weight40.5 kg
Operation Conditions
- Temperature-30℃~ 50℃
- Humidity10 ~ 80%, non-condensing
Mechanical Specification
- VESA Mount995 x 500 mm
- Bezel Width24.9mm (T/B/L/R)
- Glass Thickness5T
- Glass FilmAG, AR, 4/λ
Optional Feature
- Protection GlassYes
- MountSold Separately
SoC
- OS VersionTizen 6.5
- Flash Memory Size8GB
Certification and Compliance
- EMCClass A
- Safety60950-1, 62368-1
