Yamaha

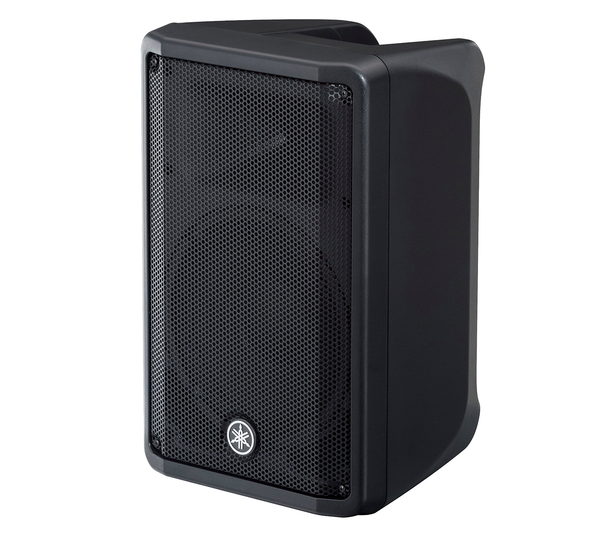

Yamaha DBR10 10" LF driver, 1" HF compression driver. 700W, max 129dB SPL.

SKU:
DBR10
Plus Shipping
Calculated at Checkout
  • Yamaha DBR10 10" LF driver, 1" HF compression driver. 700W, max 129dB SPL.
  • Yamaha DBR10 10" LF driver, 1" HF compression driver. 700W, max 129dB SPL.
  • Yamaha DBR10 10" LF driver, 1" HF compression driver. 700W, max 129dB SPL.
  • Yamaha DBR10 10" LF driver, 1" HF compression driver. 700W, max 129dB SPL.

Product images are used for illustration purposes only.

View Alternatives


×

This stock info gives you an outline of whether a product on our webstore is available to purchase or not.

Stock Availability:

In Stock: Stock is available and ready to ship.

Available to Click & Collect from MediaForm warehouse: Stock is available for customer to pick-up from either our Sydney, Brisbane or Melbourne warehouse.

SYDNEY PICK-UP HOURS:  Monday to Friday, 10am to 2pm
BRISBANE PICK-UP HOURS:  Monday to Friday, 9am to 4pm
MELBOURNE PICK-UP HOURS:  Temporarily Unavailable

Available to Ship from Supplier Warehouse: Stock is available to ship to customer from our Supplier warehouse but not available to pick-up.

Call us for ETA: Stock is unavailable in MediaForm or supplier warehouses. Product may be on back order (contact us for ETA date) or has been discontinued.

Please understand we do our best to have stock availablity up to date on our webstore but there could be discrepancy at times due to our inventory data not being real-time.

$617.10 Inc. GST
$561.00 Ex. GST

CALL US FOR ETA

View Alternatives



Customer Click & Collect:   View our conditions here.
For Returns & Refunds:   View our policy here.
Customers Also Purchased  CUSTOMERS ALSO PURCHASED

Description

Yamaha DBR10 10" LF driver, 1" HF compression driver

10" 2-way Powered Loudspeaker


* 700W, max 129dB SPL
* 2-way, Bi-amp powered speaker, Bass-reflex type
* 55Hz – 20kHz Frequency range (-10dB)
* Nominal coverage - 90° H, 60° V
* Diameter:10" cone, Voice Coil:2", Magnet:Ferrite
* Diaphragm:1", Type: 1" throat compression driver, Magnet:Ferrite
* INPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced)
* OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
* Fan cooling, 4 speeds
* Top Handle
* 35mm Pole Socket
* Net weight: 10.5 kg

Custom Designed Transducer

The high power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4" precision compression driver* produces accurate mid-range and high frequencies.

*DBR10 features a 1" compression driver.

A Rugged, Highly Portable Cabinet

DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the highest level of portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while a newly designed ergonomic handles provide effortless transportation and system setup.

Easy-to-use Onboard 2-Channel Mixer

DBR Series speakers have two input channels. CH1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. CH2 offers two input options; a combo jack that accepts XLR or TRS Phone, and an RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either CH1+2 MIX to mix the signal of CH1 and CH2, or CH1 THRU to pass the signal from CH1 only.

Smart Enclosure Design for Floor Monitoring

DBR Series speakers feature an optimized 50°wedge angle for floor monitoring. In addition the DBR12 and DBR15's symmetrical shape allows for effortless configuration of a mirror-mode floor monitoring system in either symmetrical or stereo sound field setups.

Rigging Points for Installation Applications

DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts.

*Speaker brackets and eye-bolts are not included.

Options

Functional Speaker Cover

The functional speaker covers that protect your speakers from unfavorable weather conditions during outdoor performances, dusty and dirty warehouse storage, or the rigors of equipment transport on the road.

- Trilaminar fabric of durable polyester, with inner PVC coat and cushion inside for impact suppression

- Front mesh allows sound reinforcement with the cover as well as ensures amp cooling

- Rear roof allows easy access to the rear panel with the cover on

- Handle slit allows easy access to the handles for carriage

- Cable pocket additional space for carrying cables

*NOTE: The covers do NOT guarantee water-drip protection.
