Description
SAMSUNG (OHA) OUTDOOR IP56 DISPLAY, 55" FHD, 3500NITS, HDMI(2), LAN, 24H/7D, 3YR
Clear and vivid anytime, anywhere
The OH55A is incredible for outdoor visibility, offering greater brightness than 3,500nit and 24/7 performance to deliver crisp content. Plus, a built-in auto brightness sensor automatically adjusts brightness based on any external lighting, for a versatile, operationally efficient display.
* Images and enclosure are simulated and for illustration purpose only.
Optimised protection in a variety of outdoor conditions
IP56-rated protection
With certified IP56-rated protection*, OH55A delivers robust reliability to withstand physical impact as well as dust and water that might affect the display. This ensures optimised operation in a variety of outdoor conditions for consistent performance.
* IP56 (Ingress Protection Rating): Degrees of protection provided by enclosures (IEC 60529). IP56 rating means that the device is protected against dust and strong jets of water with limited ingress under certain defined test conditions. According to accredited test results, individual results may vary. Note: IP56 rating does not mean that the device is impervious to water damage in any situation.
Images and enclosure are simulated and for illustration purpose only.

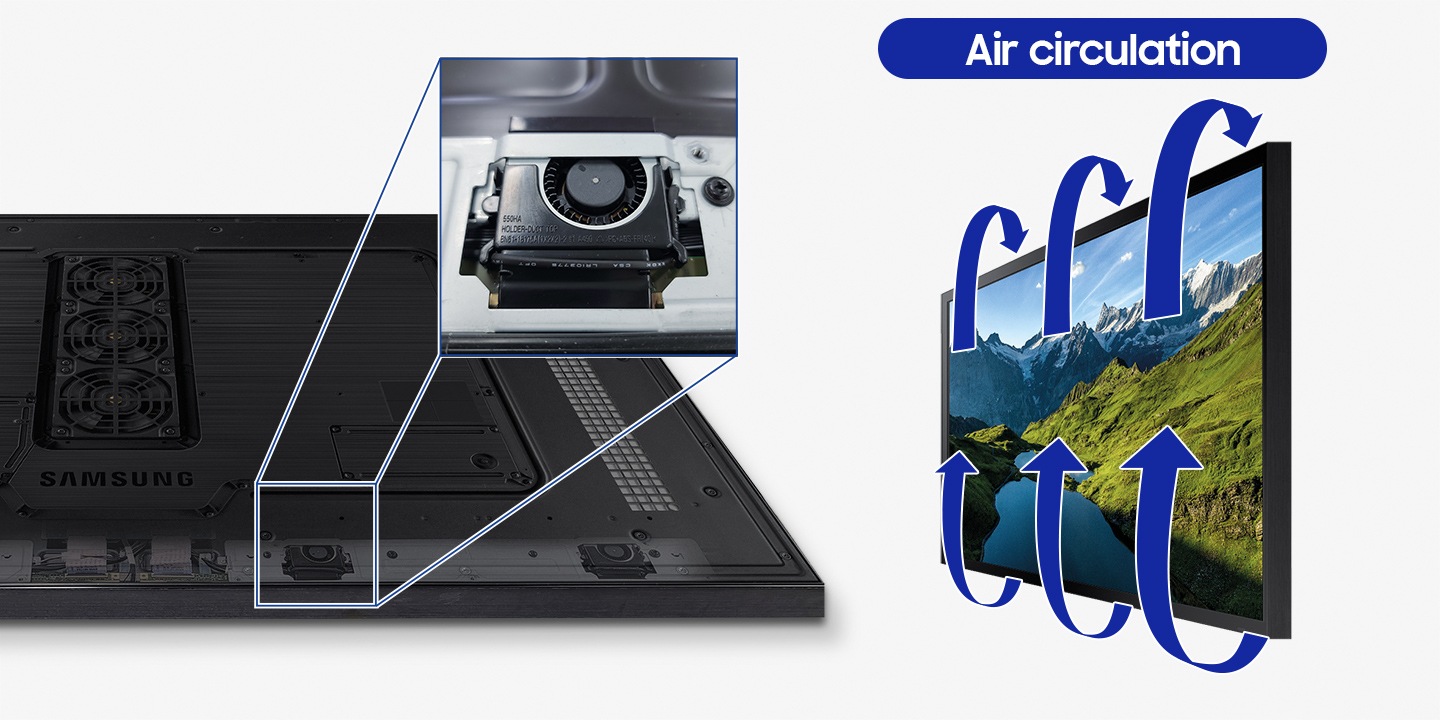

Minimise humidity for optimal performance
Newly added fans
With four newly added, hidden fans in the downside of the display, the OH55A reduces concerns around external humidity issues such as condensation. The effective air propelling capabilities of the display by the fans enable seamless operation.
Robust durability for screen safety
Magic Protection Glass
Fitted with tempered Magic Protection Glass, the Samsung OHA provides durability that is IK10-rated, ensuring advanced safety and protection against external impact.* This ensures the product is safe against unexpected damage, giving store manager better peace of mind.
* The IK European strength test rating uses a 0-10 scale (where 10 indicates the highest possible protection) to measure the degree of resistance against external impact.

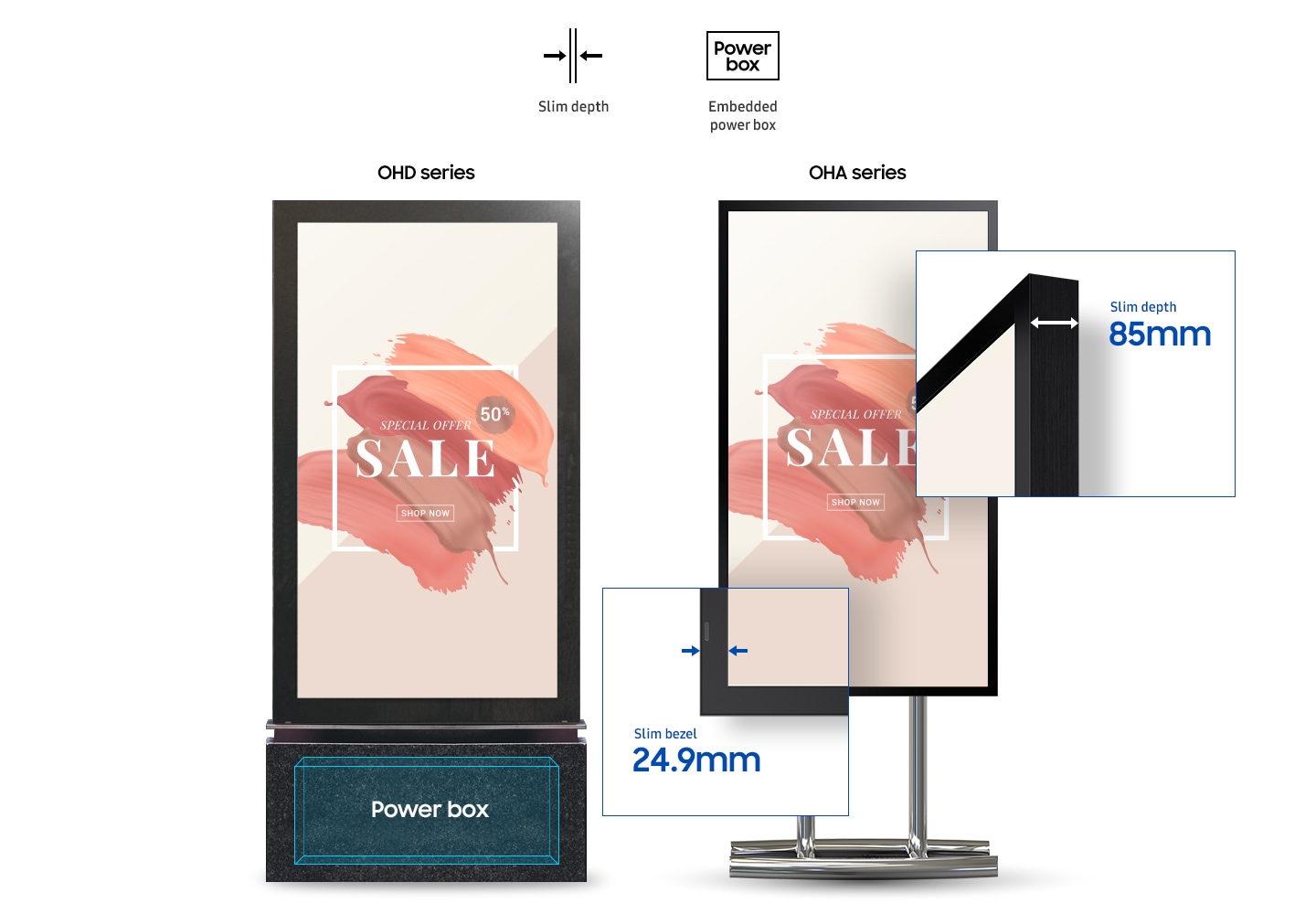

Powerful performance with slim design
All-in-one composition
A slim, all-in-one composition enables easy installation, while long-term performance is ensured through IP56 protection*, vandalism defense^ and an efficient cooling system. Plus, an integrated power box condenses operational components and supports an ultra-slim frame.
* IP56 (Ingress Protection Rating): Degrees of protection provided by enclosures (IEC 60529). IP56 rating means that the device is protected against dust and strong jets of water with limited ingress under certain defined test conditions. According to accredited test results, individual results may vary. Note: IP56 rating does not mean that the device is impervious to water damage in any situation. Images and enclosure are simulated and for illustration purpose only. ^IK-10 rated. The IK European strength test rating uses a 0-10 scale (where 10 indicates the highest possible protection) to measure the degree of resistance against external impact.
Smooth and seamless content playback
MagicINFO Player S6
The embedded MagicINFO Player S6, backed by the powerful TIZEN operating system, boosts the overall performance of the display and offers painless content management.* This ensures seamless transitions and playback to deliver an excellent experience for both customers and store managers.
* MagicINFO license must be purchased separately.
Powerful, protective security
Protected by Knox
The OHA series uses comprehensive three-layer security protection, powered by Samsung’s proprietary Knox technology, supporting application development on the secured platform and minimisation of security attacks.
Specifications
Specifications Detail
Display
- Diagonal Size55"
- Panel TypeVA
- Resolution1,920 x 1,080
- Brightness (Typical)3,500 (Peak 4,000 )
- Contrast Ratio⁵5,000:1
- Viewing Angle (H/V)178/178
- Response Time8ms
- Colour Gamut72 %
- Glass Haze0 %
- H-Scanning Frequency26~136kHz(HDMI)
- Maximum Pixel Frequency594MHz(HDMI)
- V-Scanning Frequency24~75Hz(HDMI)
- Contrast Ratio (Dynamic)100,000:1
- Operation Time Support24/7
Connectivity
- HDMI In2
- USB1
- HDBaseT InYes
- Audio OutStereo Mini Jack
- Power OutNo
- RS232 InYes
- RS232 OutYes
- RJ45 InYes
- RJ45 OutYes
Power
- Power SupplyAC100-240V 50/60Hz
- Power Consumption (On Mode)530W
- Power Consumption (Sleep Mode)0.5W
Dimension
- Set Dimension (WxHxD)1260.6 x 731.4 x 85 mm
- Package Dimension (HxWxD)1358 x 230 x 845 mm
Weight
- Net Weight46.1 kg
- Package Weight52.6 kg
Operation Conditions
- Temperature-30℃~ 50℃
- Humidity10 ~ 80%, non-condensing
Mechanical Specification
- VESA Mount1186 x 560 mm
- Bezel Width24.9mm (T/B/L/R)
- Glass Thickness5T
- Glass FilmAG, AR, 4/λ
Optional Feature
- Protection GlassYes
- MountSold Separately
Certification and Compliance
- EMCClass A
- Safety60950-1
