Description

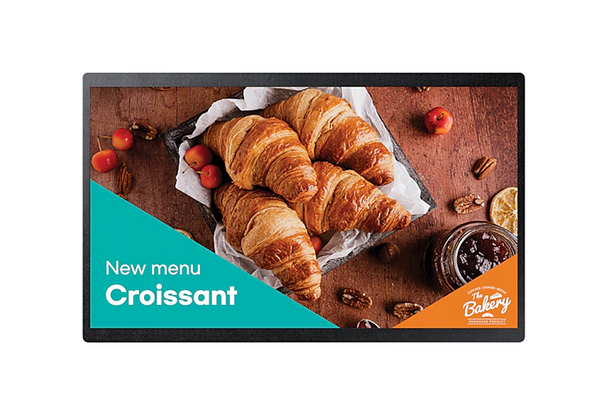

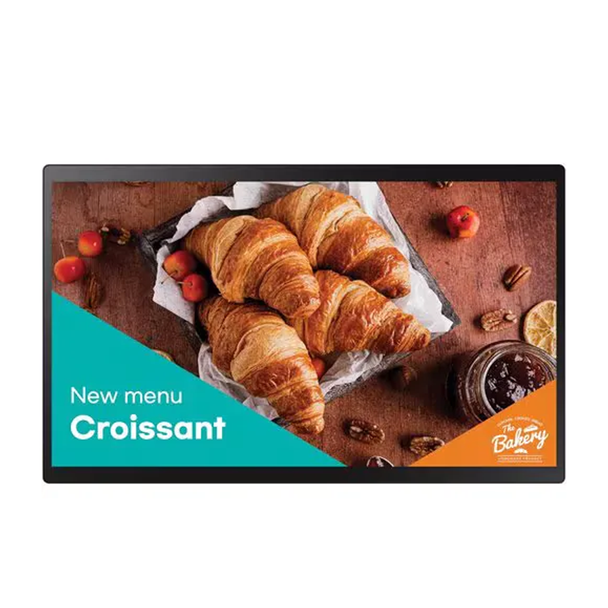

SAMSUNG (QBC) PRO DISPLAY, 24" FHD, 250NITS, HDMI, LAN/WIFI, SPKR, PORT/LAND, 16H/7D, 3YR
Expand commercial space with compact display
Get the most out of every space with Samsung QB24C small digital signage. The compact display provides sharp messaging with its Full HD resolution. Its enhanced internal solutions and intuitive home screen UX make it easy to use, also ensuring reliable performance for any business use.
Hold sizable opportunities in small spaces
Compact Design
The compact design of the QB24C allows for efficient space utilization, even in compact locations. A sleek rear design makes the display optimal for wall mounting while the connectivity, content play and device controls are easy to operate.
Connect with convenience
Home UI
QB24C boasts greater usability with an upgraded home screen UI. Popular categories like Features, Sources and Settings are displayed on the same screen for convenient availability. The Favorites folder grants users quick, easy access to frequently used features in a single click.
Convenient, clean display control
Center IR
With center IR, each display receives IR signals directly to the panel, allowing easy and convenient remote control. When mounted, the display doesn't require an IR receiver cable extension. Built-in Wi-Fi allows wireless remote management for both content and display.
Safe operation, reliable performance
IP5X / EMC Class B
QB24C is electromagnetic compatibility (EMC) class B compliant, meeting strict safety and reliability standards for operation. Additionally, the display's IP5x rating underscores its robust durability even in dusty environments.
Change the way to manage your display
Samsung VXT
Samsung VXT is a cloud-based solution that brings together content management and remote device management capabilities, allowing users to remotely manage hardware settings and troubleshoot issues from afar, while effortlessly creating and deploying content without the need for training.
* Samsung VXT must be purchased separately.
Specifications
Specifications Detail
Display
- Diagonal Size23.8"
- Panel TypeADS
- Resolution1,920 x 1,080
- Pixel Pitch (HxV)0.2745 x 0.2745 mm
- Brightness (Typ)250 nit
- Contrast Ratio1,000:1
- Viewing Angle (H/V)178/178
- Response Time14ms
- Colour Gamut72(NTSC)
- Glass Haze25 %
- H-Scanning Frequency56~84.5KHz
- Maximum Pixel Frequency148.5MHz
- V-Scanning Frequency48~75Hz
- Contrast Ratio (Dynamic)Mega
- Operation Time Support16/7
Connectivity
- HDMI In1
- DP InNo
- Version of HDMI1.4
- Version of DPNo
- Version of HDCP2.2
- USB1
- IR InYes
- Audio InNo
- Audio OutStereo Mini Jack
- RS232 InYes
- RJ45 InYes
- WiFiYes
- BluetoothYes
Power
- Power SupplyAC100-240V 50/60Hz
- Power Consumption (On Mode)38.5 W
- Power Consumption (Sleep Mode)0.5 W
Dimension
- Set Dimension (WxHxD)547.9 x 334.4 x 31.8 mm
- Package Dimension (WxHxD)620 x 419 x 122 mm
Weight
- Set Weight with Stand3.0 kg
- Package Weight4.1 kg
Operation Conditions
- Temperature0 °C~ 40 °C
- Humidity10 ~ 80%, non-condensing
Mechanical Specification
- VESA Mount100 x 100 mm
- Bezel WidthUD : 17.9 / LR : 9.4
- Bezel ColorBlack
- Frame MaterialNon-Glossy
Optional Feature
- MountNo
- StandNo
SoC
- OS VersionTizen 7.0
- Flash Memory Size8GB
Certification and Compliance
- EMCClass B
- Safety60950-1, 62368-1
